Poseidon AR-24 Lightweight All Road Wheelset - Center-lock disc / Thru-axle
FREE BIKE SHIPPING IN CONTIGUOUS USA
LIFETIME WARRANTY ON ALL POSEIDON FRAMES
1 YEAR LIMITED WARRANTY ON ALL COMPONENTS
What is My Size?
Translation missing: en.accessibility.product_details_accordion_title
Description

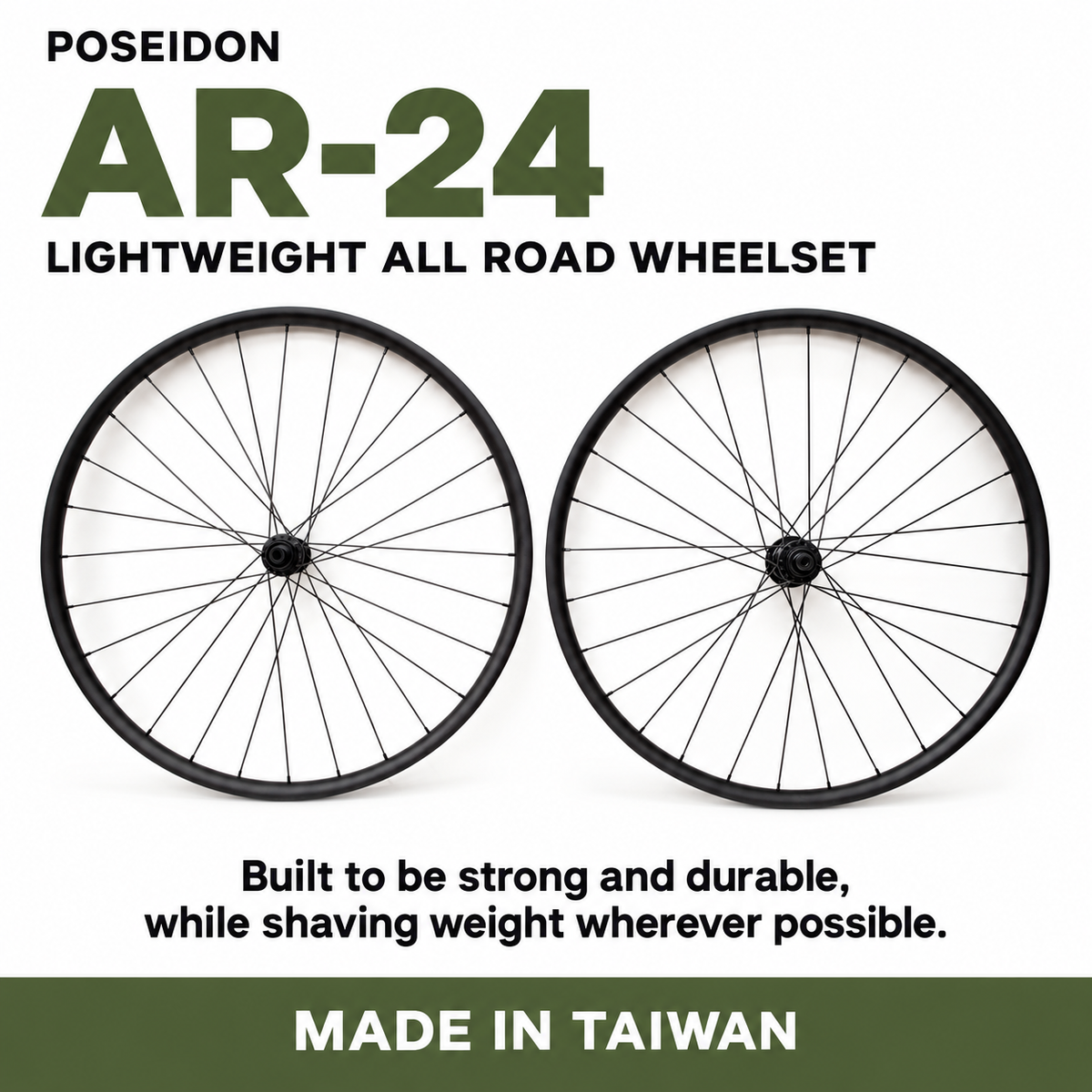

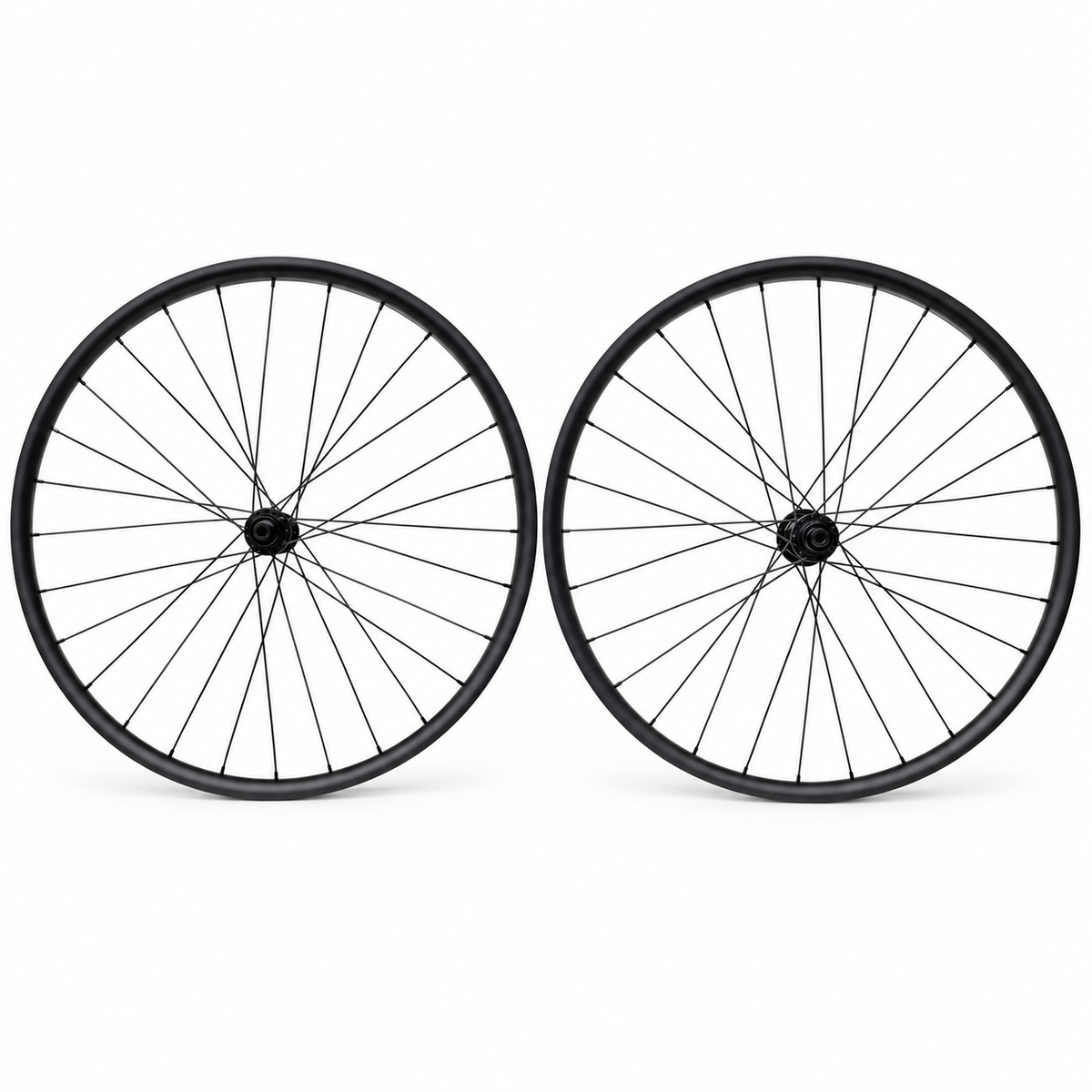

Poseidon AR-24 Lightweight All Road Wheelset
All-Road versatility. Aero-inspired design. Made in Taiwan.
The Poseidon AR-24 takes its name from All-Road and Aero, bringing together a modern wide rim platform, a rounded U-shaped profile, and Taiwan-made construction.
Our philosophy is simple: build a fast, strong, durable wheelset while shaving weight wherever possible. From its lightweight aluminum rims to its traditional six-pawl freehub and reinforced weather sealing, the AR-24 reflects our focus on practical performance and quality construction—for pavement, gravel, and the roads connecting them.
Wide rims. Purposeful profile.

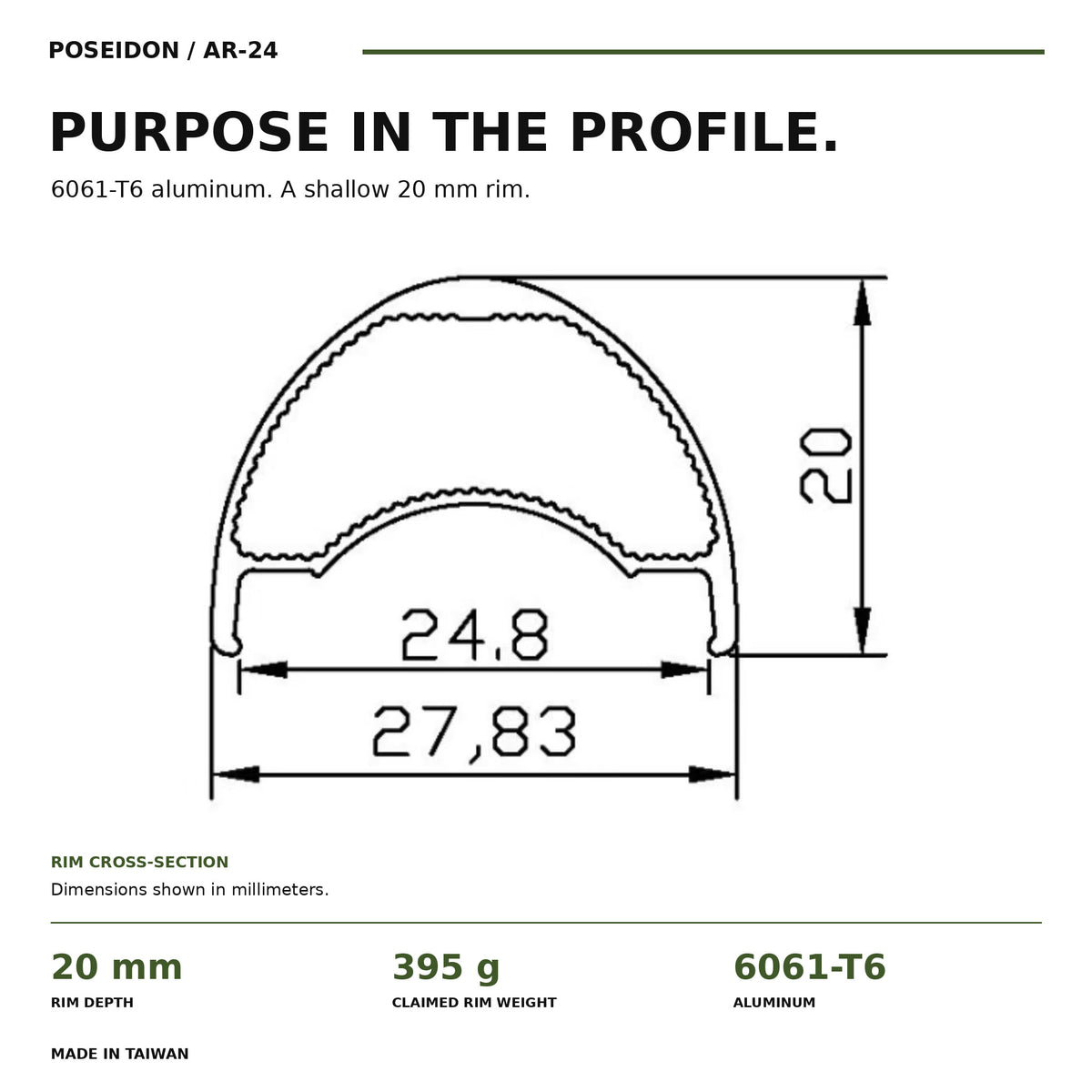

The AR-24 features a 24.8 mm internal rim width, placing a modern wide rim platform at the center of its all-road design. A 27.83 mm external width and 20 mm-deep U-shaped profile complete its aero-inspired shape.
Made from 6061-T6 aluminum, each rim weighs a claimed 395 g and uses a sleeved joint. The profile and material choices reflect the balance behind the entire wheelset: strength, durability, and careful attention to weight.

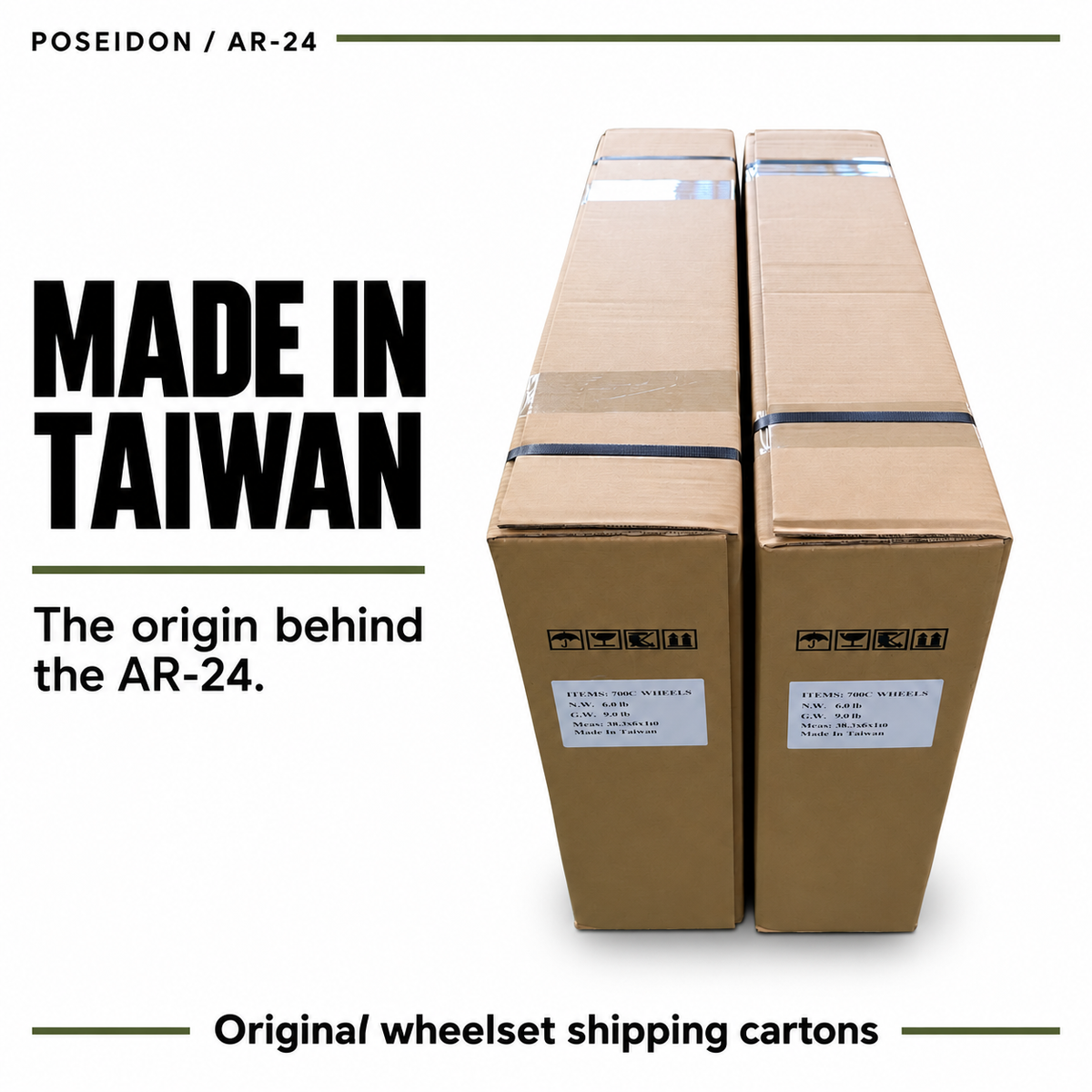

Taiwan-made quality. Handbuilt with purpose.

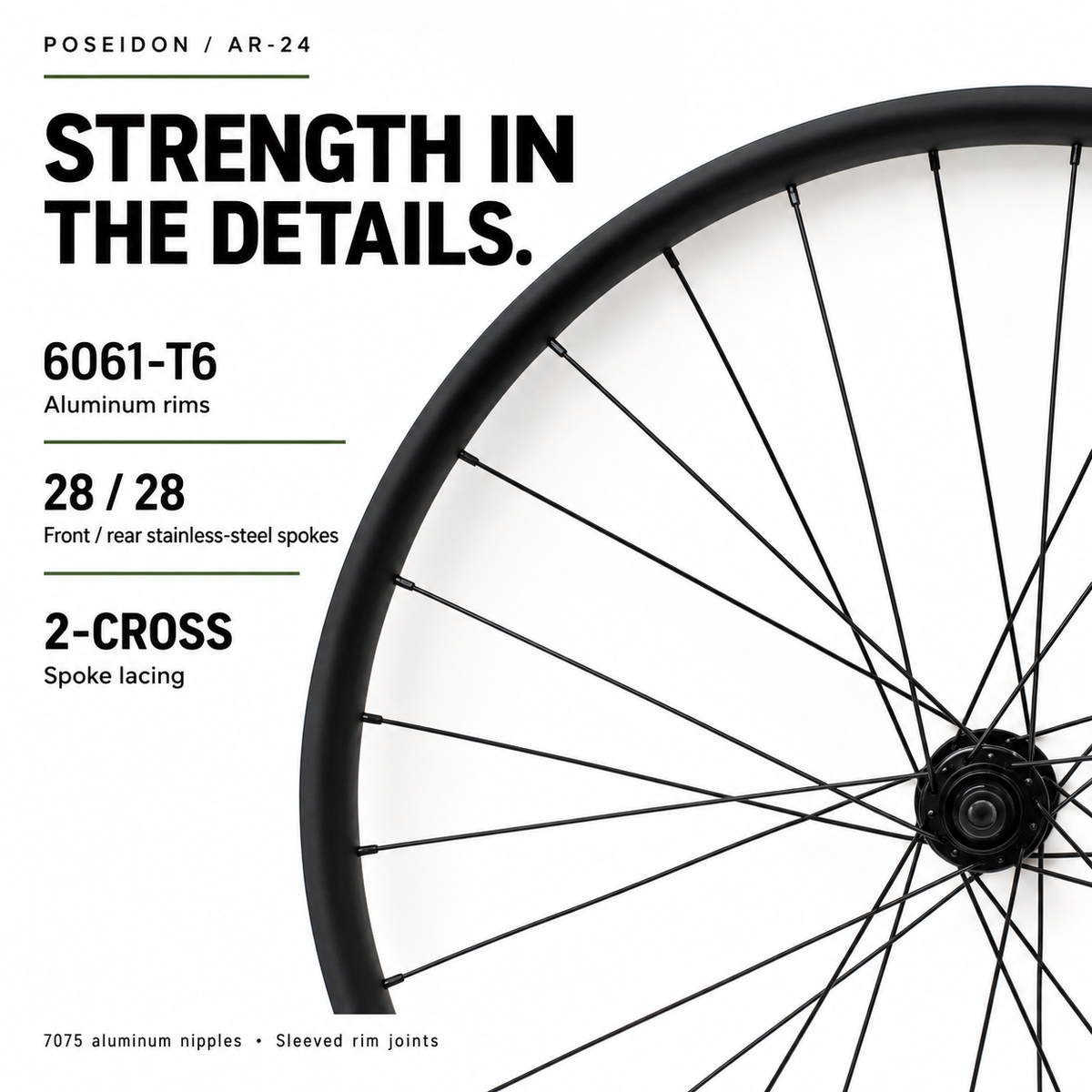

Proudly made and handbuilt in Taiwan, the AR-24 pairs its aluminum rims with 28 stainless-steel J-bend spokes per wheel, two-cross lacing front and rear, and 7075 aluminum nipples.
We chose J-bend spokes over a straight-pull design for their hooked attachment through the hub flange, with secure spoke retention and durability on rough roads in mind. 7075 aluminum nipples help keep weight down, while an understated black finish completes the look.

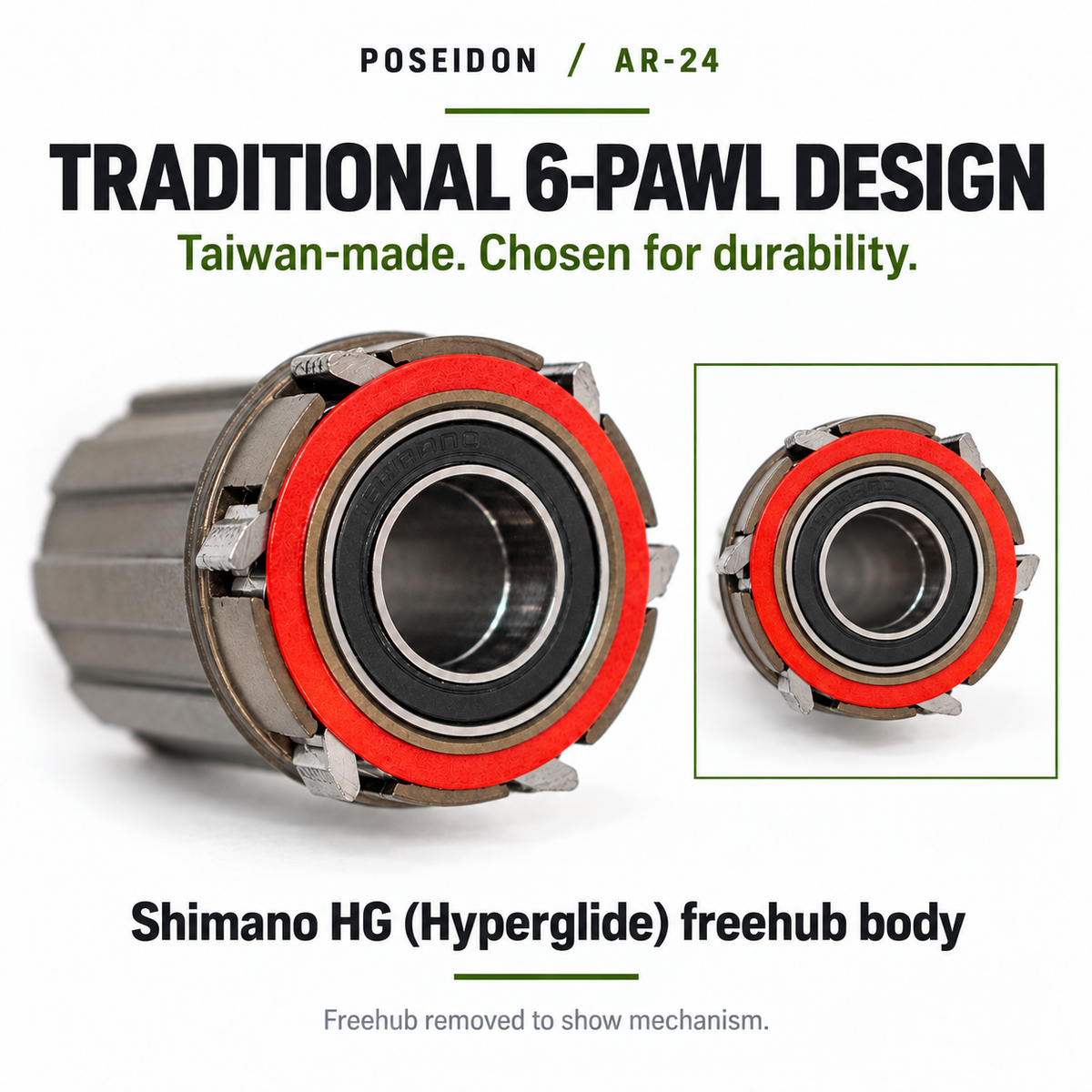

Traditional six-pawl design
We chose a Taiwan-made traditional six-pawl freehub mechanism, prioritizing quality and long-term durability. Its established mechanical design reflects the AR-24 philosophy: thoughtful components selected for everyday performance and reliability.
The Shimano HG (Hyperglide) freehub body provides the cassette mounting interface.
Sealed bearings. Reinforced weather protection.

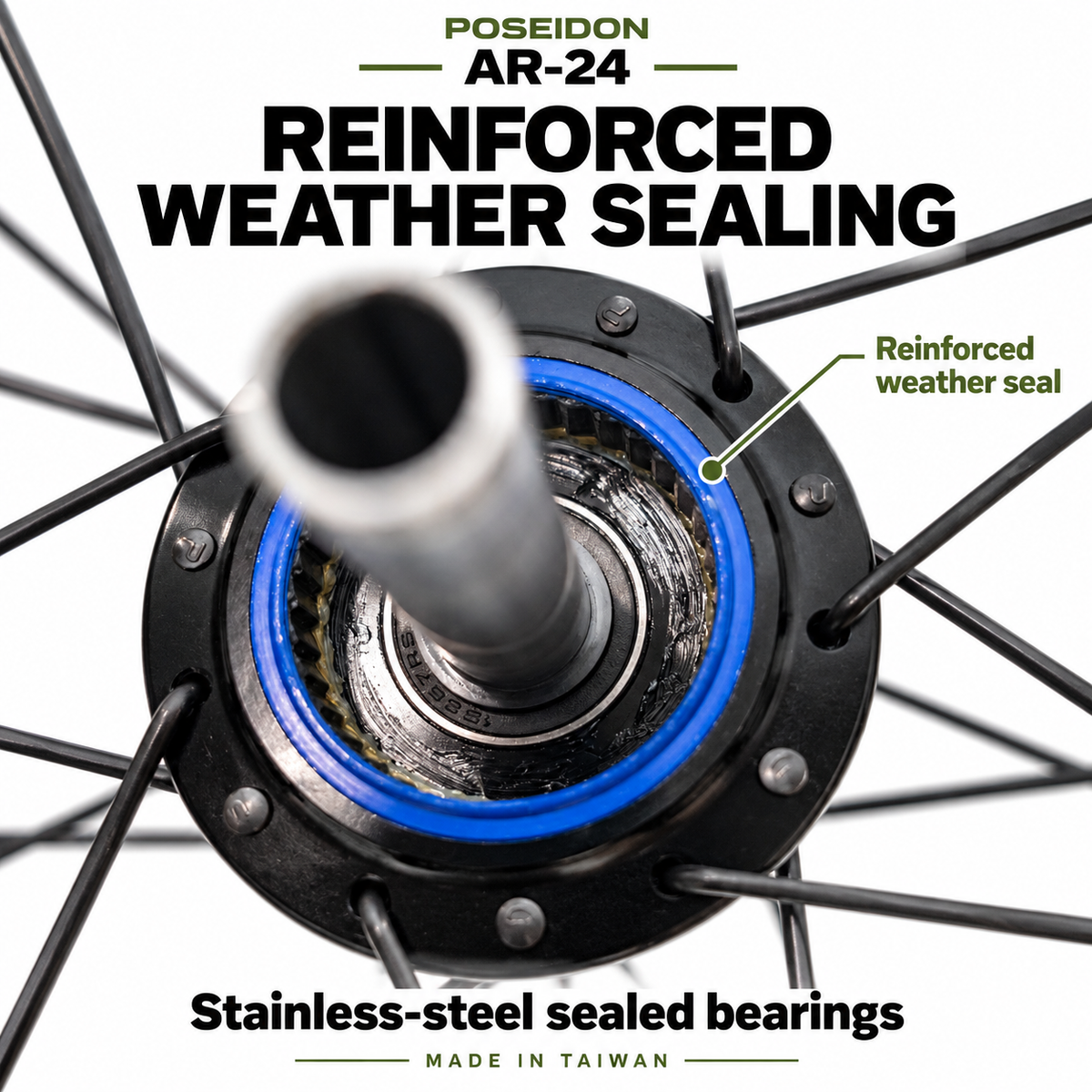

The AR-24 uses stainless-steel sealed bearings with reinforced weather sealing to help keep water, dirt, and road spray out.
It’s another detail that reflects our focus on durability, giving weather protection a place alongside weight and construction in the wheelset’s design.
Thru-axle fit. Center Lock braking.
The AR-24 is built for 12 × 100 mm front and 12 × 142 mm rear thru-axle spacing, with Center Lock disc rotor mounts on both wheels.
Check these standards against your frame, fork, and brake rotors when planning your upgrade.

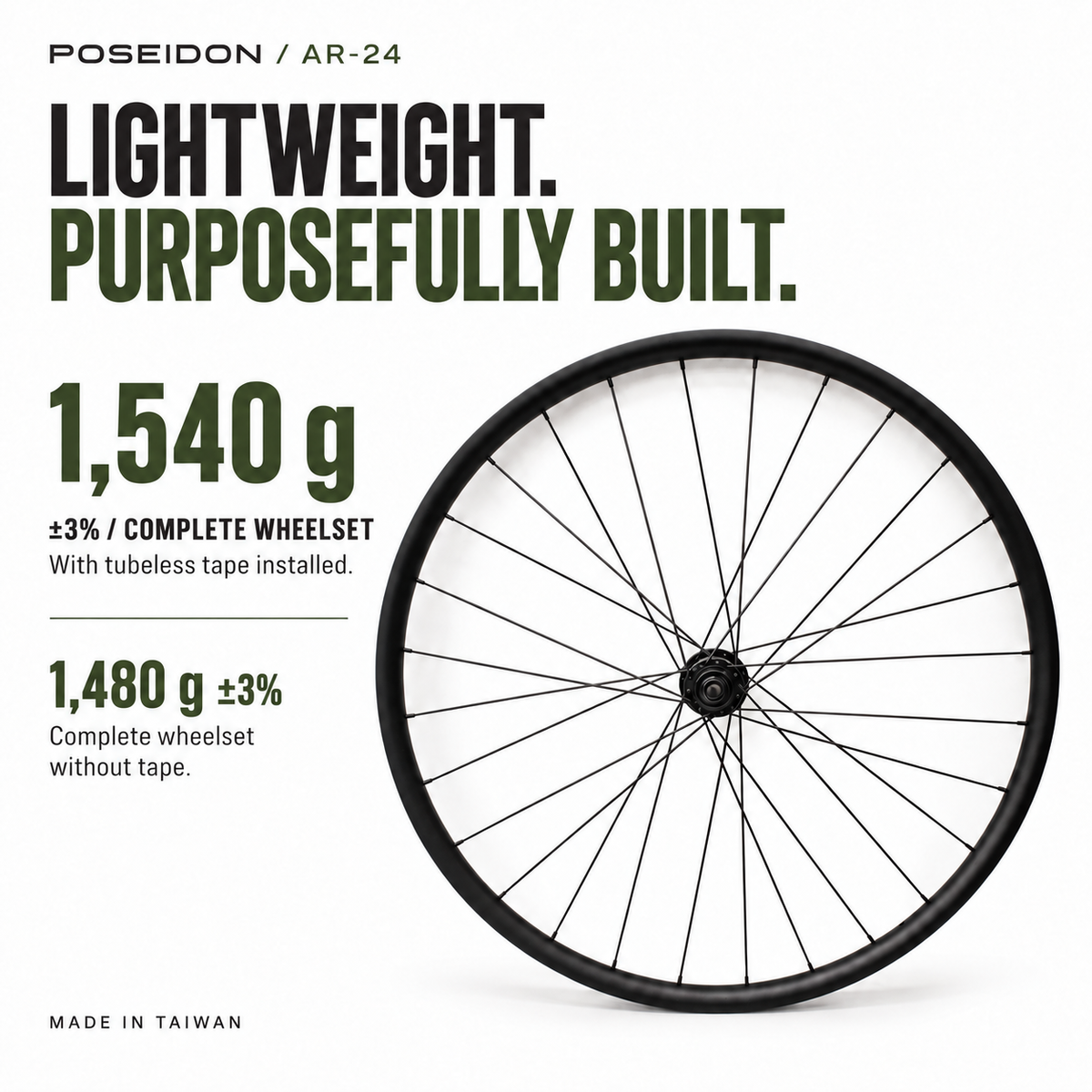

Low weight. Clearly stated.
The complete front and rear wheelset weighs:
-
1,480 g ±3% without tubeless tape
-
1,540 g ±3% with tubeless tape installed
With 395 g aluminum rims, the AR-24 combines carefully selected materials and construction to keep weight down while staying true to its durability-focused design.

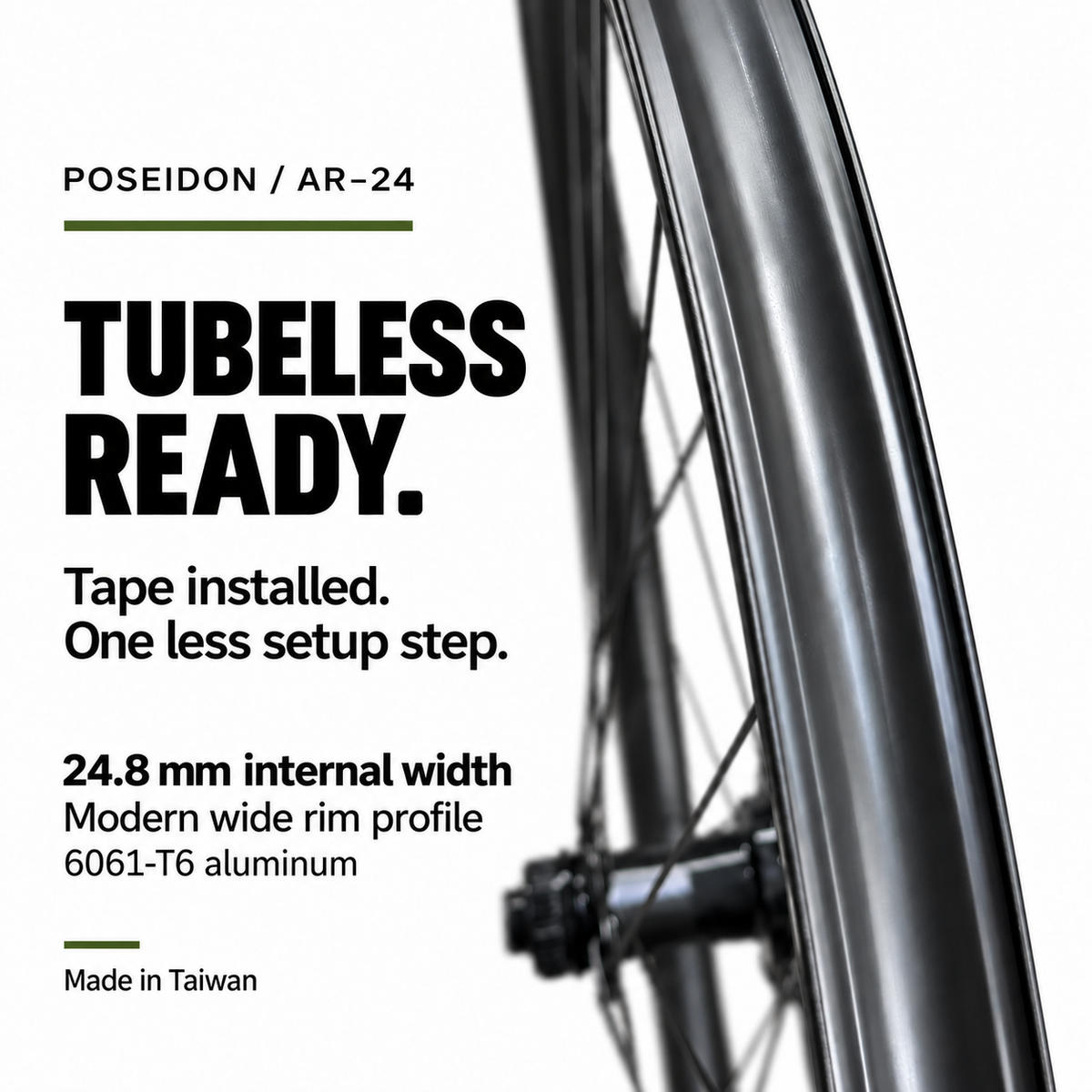

Tubeless ready, with tape installed
Your AR-24 arrives with tubeless tape already applied, taking one step out of the setup process. Complete your tubeless build with compatible tires, valves, and sealant.
Built to be fast, strong and durable, while shaving weight wherever possible. Find your path with the Poseidon AR-24.
Specifications
| Specification | Detail |
|---|---|
| Model | Poseidon AR-24 |
| AR designation | All-Road / Aero |
| Wheel size | 700c |
| Axle type | Thru-axle |
| Front axle standard | 12 × 100 mm |
| Rear axle standard | 12 × 142 mm |
| Rotor interface | Center Lock disc |
| Rim material | 6061-T6 aluminum |
| Internal rim width | 24.8 mm |
| External rim width | 27.83 mm |
| Rim depth | 20 mm |
| Rim profile | Rounded U-shaped |
| Rim weight | 395 g per rim |
| Rim joint | Sleeved |
| Tire type | Tubeless ready |
| Tubeless tape | Pre-installed |
| Spokes | 28 front / 28 rear |
| Spoke type | J-bend |
| Lacing | Two-cross, front and rear |
| Spoke material | Stainless steel |
| Nipple material | 7075 aluminum |
| Bearings | Stainless-steel sealed bearings |
| Weather protection | Reinforced weather sealing |
| Freehub interface | Shimano HG (Hyperglide) |
| Freehub mechanism | Taiwan-made traditional six-pawl |
| Wheelset weight without tape | 1,480 g ±3% |
| Wheelset weight with tape | 1,540 g ±3% |
| Finish | Black |
| Made in | Taiwan |
| Wheel assembly | Handbuilt in Taiwan |
Weights refer to the complete front and rear wheelset unless otherwise specified. Confirm frame, fork, rotor, cassette, and tire compatibility before installation.
