Written by: JJ Goh | October 15, 2026 | Time to read: 4 min
Mechanical-hydraulic disc brakes are worth considering for gravel bikes because they combine hydraulic caliper operation with compatible cable-operated brake levers. Correctly paired and adjusted, they provide a practical way to use hydraulic calipers without converting to fully hydraulic controls.
We tested a set on our Poseidon test bike with microSHIFT Sword brifters and compressionless brake housing. In our testing, that combination worked flawlessly.
Here’s how the technology works, why the complete setup matters, and what to look for when comparing gravel bike brakes.
How Do Mechanical-Hydraulic Disc Brakes Work?
Mechanical-hydraulic brakes—also called cable-actuated hydraulic brakes or hybrid disc brakes—use a steel cable between the brake lever and caliper.
Pulling the lever tensions the cable, which activates a hydraulic mechanism inside the caliper. Fluid pressure moves the pistons, pressing the pads against the rotor.
The cable supplies the input; the hydraulic mechanism operates the pads.
A fully hydraulic brake instead transmits fluid pressure through a hose from the lever. Hybrid systems retain the cable connection, allowing hydraulic caliper operation with compatible mechanical brake levers.
That makes them an interesting option for riders who want to retain their existing lever and shifting arrangement.
Why Consider Them for Gravel Riding?
Gravel riding involves constant adjustments. Pavement becomes dirt. Hardpack becomes loose stones. The descent you admired on the climb suddenly requires your full attention.
Braking helps you manage those transitions.
Modulation describes your ability to vary braking force as you change pressure at the lever. It matters when you want to reduce speed deliberately before a corner or adjust your pace as the surface changes.
Mechanical-hydraulic calipers bring hydraulic operation into that process while retaining cable-operated controls. Their appeal is the combination, especially when the levers, housing, and calipers work well together.
That’s why we wanted to evaluate a complete setup on a bike, rather than judge the technology from the specification alone.
How Did They Perform on Our Poseidon Test Bike?

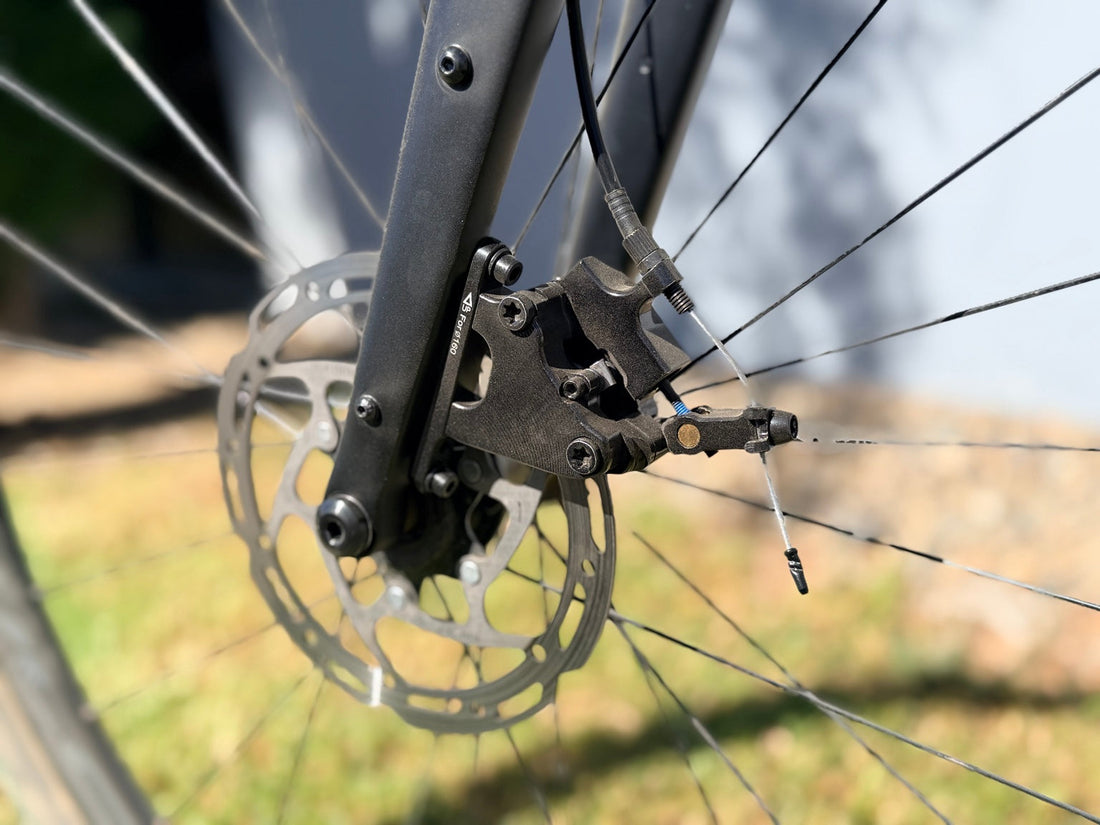

Our test bike paired the mechanical-hydraulic calipers with microSHIFT Sword brifters and compressionless brake housing.
The combination worked flawlessly in our testing.
That’s our firsthand experience with this particular setup. It gives us a concrete reason to be interested in the technology, while keeping the conclusion tied to the equipment we actually used.
It also reinforces an important point when comparing brakes: the caliper is one part of the system. Lever compatibility, housing, routing, and adjustment all contribute to the result.
A good setup deserves credit as a whole—even if only the caliper gets the close-up photo.
Why Does Compressionless Brake Housing Matter?
On a cable-operated brake, housing affects how effectively lever movement reaches the caliper.
Conventional coiled brake housing can compress under load, absorbing some movement at the lever. Brake-rated compressionless housing reduces that movement, helping improve lever feel and braking response.
That applies to both mechanical and mechanical-hydraulic brakes. Hydraulic operation inside the caliper doesn’t eliminate the importance of the cable connection.
Our test setup included compressionless housing for exactly that reason: the connection between your hand and the brake deserves attention, too.
The housing probably won’t attract compliments at the coffee stop. We’re giving it credit anyway.
Always use housing specifically rated for braking. Shift housing is not an interchangeable substitute.
Mechanical vs. Mechanical-Hydraulic vs. Fully Hydraulic Brakes
| Brake type | Connection from lever | What operates the pads | Key setup considerations |
|---|---|---|---|
| Mechanical | Cable | Mechanical mechanism | Caliper design, housing, and adjustment |
| Mechanical-hydraulic | Cable | Hydraulic mechanism inside the caliper | Lever compatibility, housing, and caliper service requirements |
| Fully hydraulic | Fluid-filled hose | Hydraulic pressure transmitted from the lever | Compatible hydraulic components and service requirements |
Each category includes different designs. Some mechanical calipers move both pads, and not every hybrid caliper has the same adjustment features.
The category explains the basic architecture. The specific components tell you more about the bike you’re considering.
Can You Keep Your Existing Brake Levers?
Potentially, provided the levers and replacement calipers are compatible.
The required cable pull must match. The calipers also need to suit the bike’s mounting arrangement, rotor specifications, and hardware.
Our test experience applies to the combination we used. It doesn’t establish compatibility with every cable-operated lever.
For an existing bike, a compatible hybrid caliper can offer an upgrade path without replacing the controls with hydraulic levers. For a new bike, ask how the braking components have been matched as a complete build.
What Maintenance Do Mechanical-Hydraulic Brakes Need?
Hybrid brakes retain cables and housing while incorporating hydraulic components inside the caliper.
Follow the specific brake’s maintenance instructions. Routine checks should cover cable condition, pad wear, adjustment, and any signs of fluid leakage. Features such as automatic pad-wear compensation vary by design.
New pads and rotors also need the appropriate bedding-in procedure to establish consistent braking.
Understanding these details helps you get the intended performance from the equipment and keep it working properly.
Are They Worth Considering for Your Next Gravel Bike?
Yes. Mechanical-hydraulic disc brakes offer a useful combination of cable-operated controls and hydraulic caliper operation. Our experience with Sword brifters and compressionless housing gave us a positive firsthand example of that combination working well.
When comparing bikes or planning an upgrade, look for compatible components, suitable housing, clear setup instructions, and service support.
Get those details right, and the brake specification becomes something more useful than terminology on a webpage: equipment you can enjoy riding with.
Then you can return to the important route-planning question.
Is there time for another loop?
